A573/A573M Carbon Steel Plate

A573/A573M Carbon Steel Plate

ASTM A573/A573M grades include 58, 65 and 70. Steel plates are suitable for structural carbon-manganese-silicon steel plates with three tensile strength ranges. ASTM A573/A573M steel plates are mainly used to improve notch toughness at room temperature.
Contact Us
Contact Us

Product Parameters


Carbon Steel: Properties, Production, Examples and Applications


Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.


Types of carbon steel and their properties


Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel [1]. Their carbon content, microstructure and properties compare as follows:




Carbon content (wt.%)MicrostructurePropertiesExamples
Low-carbon steel< 0.25Ferrite, pearliteLow hardness and cost. High ductility, toughness, machinability and weldability
Medium-carbon steel0.25 – 0.60MartensiteLow hardenability, medium strength, ductility and toughness
High-carbon steel0.60 – 1.25PearliteHigh hardness, strength, low ductility



Carbon Steel Description



Grade:


1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E


2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q


3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80


4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE



PRODUCT DETAILS



A573/A573M   Carbon Steel Plate Description
A573/A573M   steel plate has good impact resistance, small temperature deformation, good   welding performance, micro-alloying, high purity, low carbon equivalent and   strong resistance to hydrogen sulfur. Such plates   are commonly used in petroleum, chemical   industry, power stations, boilers and other industries to make reactors, heat   exchangers, separators, spherical tanks, oil and gas tanks, liquefied gas   tanks, nuclear reactor pressure shells, boiler drums, liquefied petroleum gas   bottles, turbine casings and other equipment and components.


Product   Parameters
Product NameA573/A573M   Carbon Steel Plate
Production   ProcessHot Rolling, Cold   Rolling
Material   StandardsAISI, ASTM, ASME,   DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width100mm-3000mm
Length1m-12m, or   Customized Size
Thickness0.1mm-400mm
Delivery   ConditionsRolling,   Annealing, Quenching, Tempered or Standard
Surface   ProcessOrdinary, Wire   Drawing, Laminated Film
Chemical  Composition
A573C  maxMnP  maxS  maxSi
Grade580.230.60-0.900.0350.040.10-0.35
Grade650.24-0.260.85-1.200.0350.040.15-0.40
Grade700.27-0.280.85-1.200.0350.040.15-0.40
Mechanical  Properties
A573Tensile StrengthYield  StrengthElongation %
Grade5858400-490 Mpa220 Mpa21
Grade6565450-530 Mpa240 Mpa20
Grade7070485-620 Mpa290 Mpa28
Physical  Performance
Physical PerformanceMetricImperial
Density7.85g/cm30.282 lb/in³
Scope of  Application
ASTM A573  grade steel plate for welded bridge structures.


Product Display

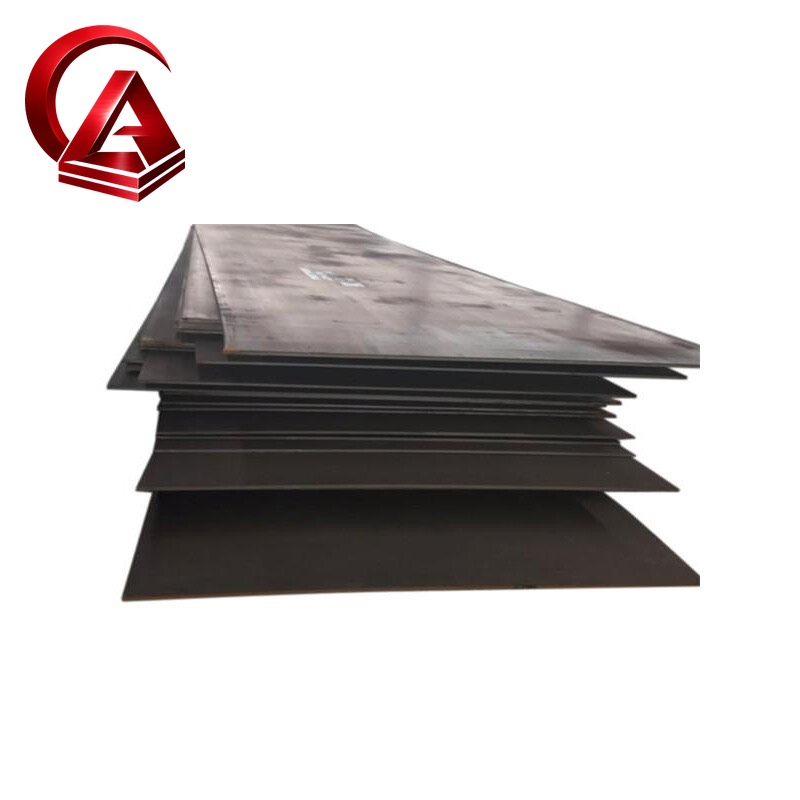

A573/A573M Carbon Steel Plate


Product Application

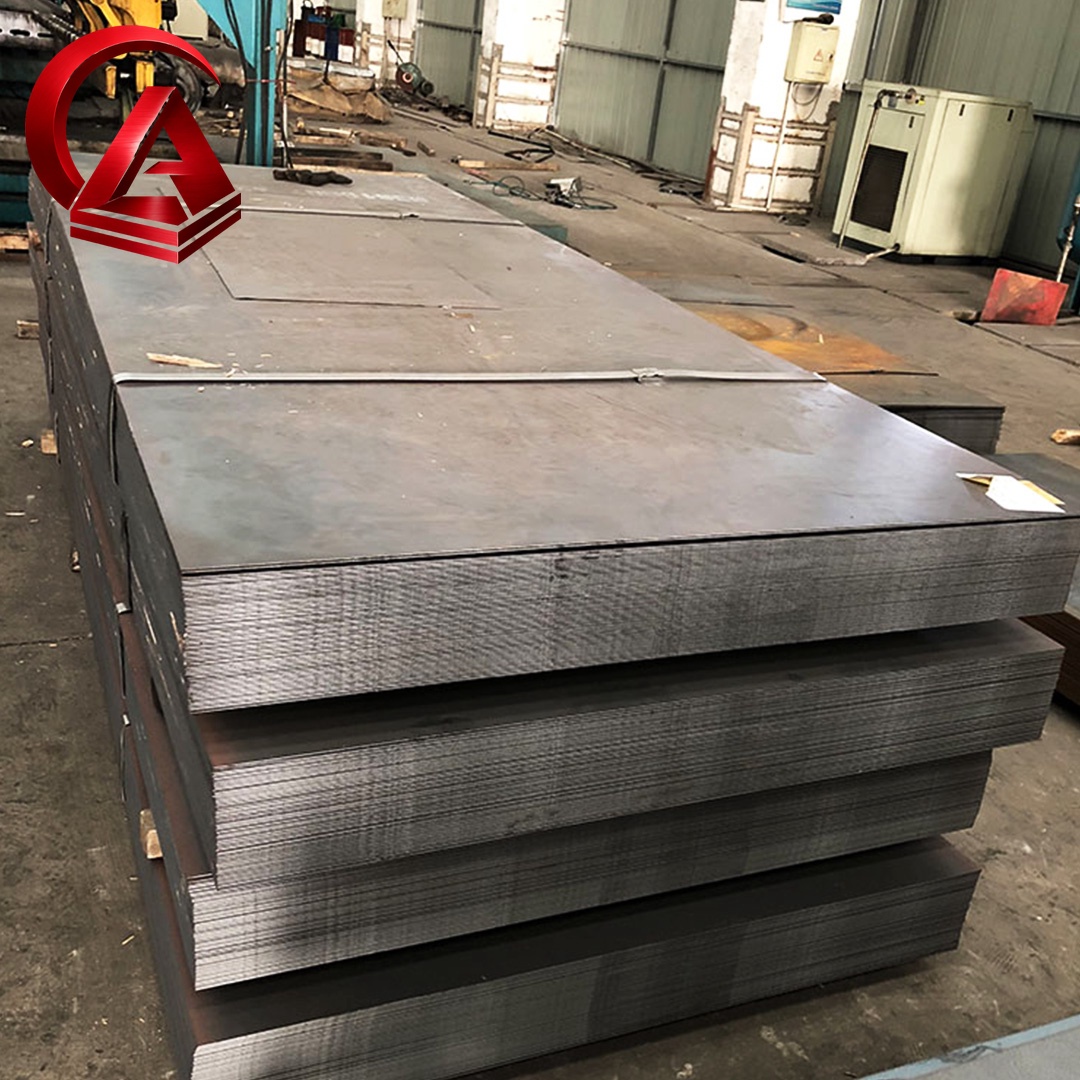

A573/A573M Carbon Steel Plate

Product Packaging

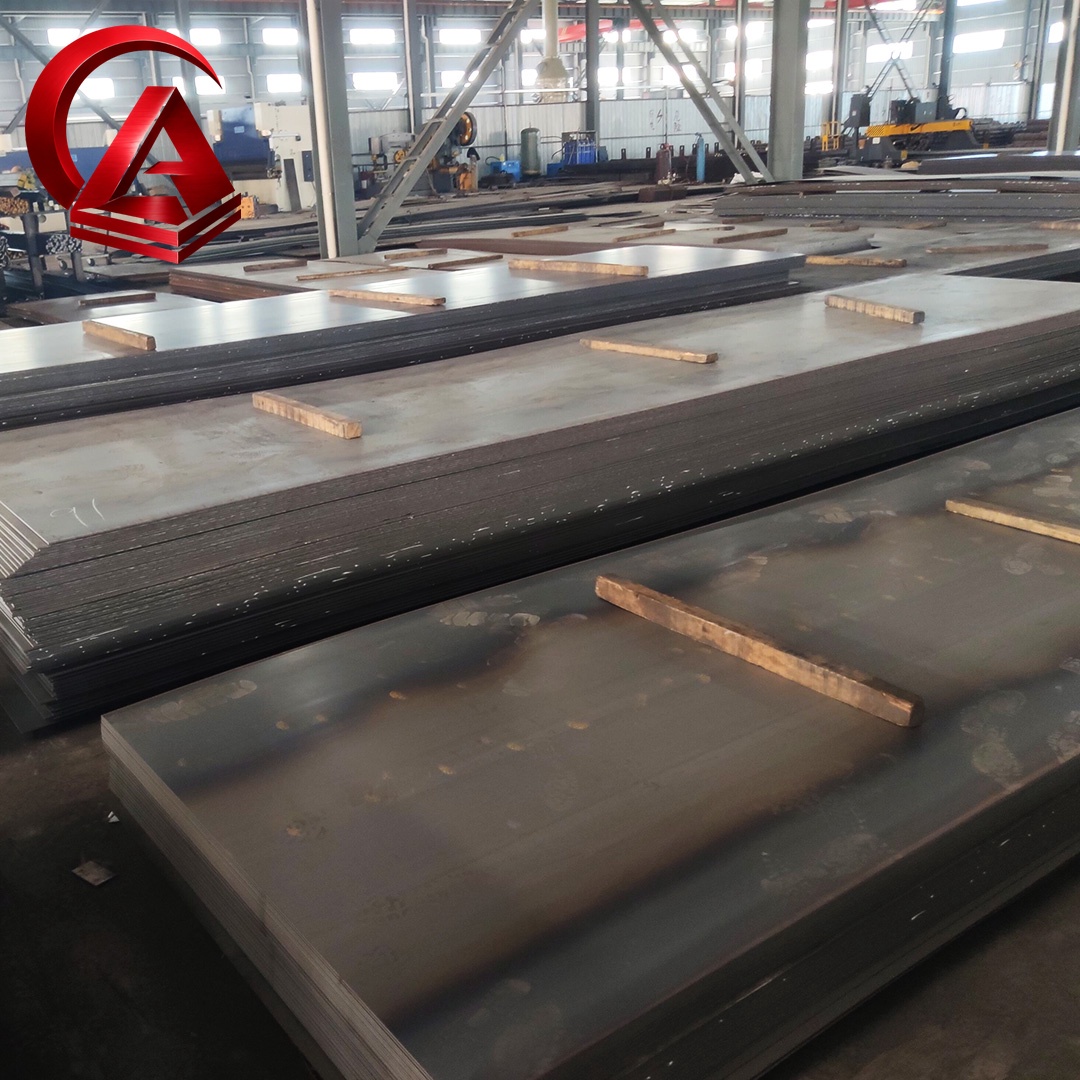

A573/A573M Carbon Steel Plate

Factory Display

  • steel coil
  • steel coil
  • steel coil
  • steel coil
  • steel pipe
  • steel coil
  • 29
  • 5

FAQ

A:

All our steel products are manufactured using genuine materials that meet national standards; we strictly adhere to national production regulations and strictly prohibit the use of non-standard specifications, adulterated materials, or defective goods. For every shipment, we provide a complete set of documentation—including material specifications, quality inspection reports, and factory certificates—free of charge. Our products support third-party re-inspection, on-site acceptance, and project filing, ensuring full traceability of quality throughout the process.

A:

We support custom processing for a full range of steel products. For items such as steel plates, profiles, pipes, and round bars, we provide tailored services—including cutting, bending, drilling, trimming, beveling, anti-corrosion painting, and hot-dip galvanizing—based on client construction drawings and on-site requirements. We can process materials to any dimension or non-standard specification, meeting the unique needs of various engineering projects and equipment manufacturing applications.

A:

We offer free sample delivery. To ensure peace of mind during the procurement process, we provide steel samples matching your specifications, allowing you to verify material quality, check manufacturing processes, and facilitate acceptance inspections by the project owner. Testing samples prior to placing bulk orders helps minimize procurement risks.

A:

Steel is a commodity with prices that fluctuate in real-time based on futures markets, raw material costs, and inventory levels; since fixed list prices can lead to discrepancies, we provide standardized, real-time manual quotes. All pricing is transparent with no hidden costs; quotes can be provided on either a tax-inclusive or tax-exclusive basis, and special VAT invoices can be issued upon request.

A:

Our company has no strict minimum order quantity requirements and supports various procurement models, including small-scale purchases, bulk stocking, and full-order supply for engineering projects. We can handle orders ranging from small top-up supplies for construction sites and ad-hoc store purchases to bulk procurement for large-scale projects, flexibly meeting the diverse needs of our customers.

A:

We support monthly settlement and deferred payment terms for high-quality project clients and long-term partner distributors. Long-term partners enjoy exclusive pricing, as well as priority in order scheduling and shipment; please contact your account manager to discuss specific partnership policies.
